Asymmetries may be missed by looking at common average montages

I have previously referred to some of the limitations of the common average montage. The following pages highlight this issue. It is far easier to see the differences between the 2 hemispheres on the bipolar montage.

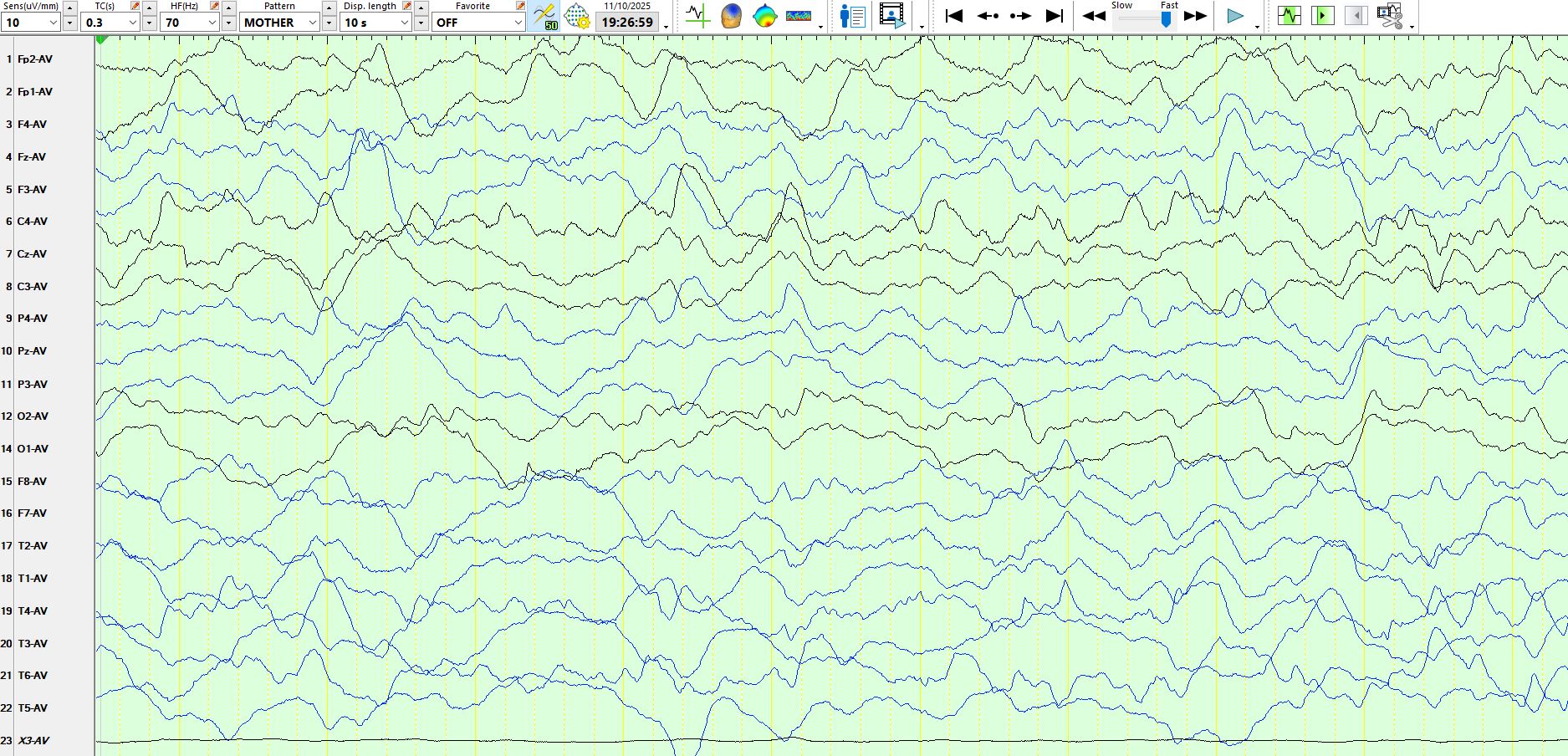

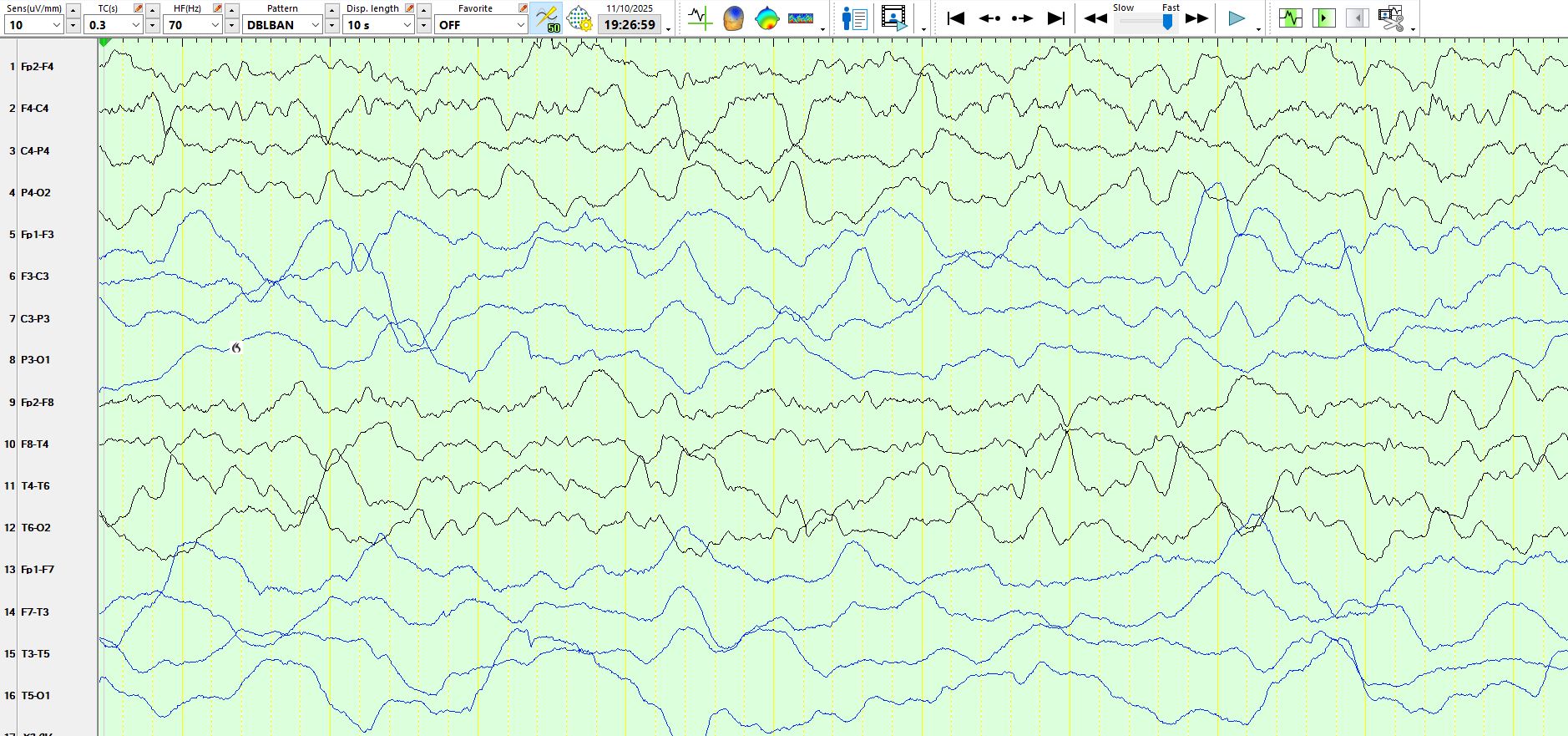

The next 2 images represent the same 10 seconds of the recording:

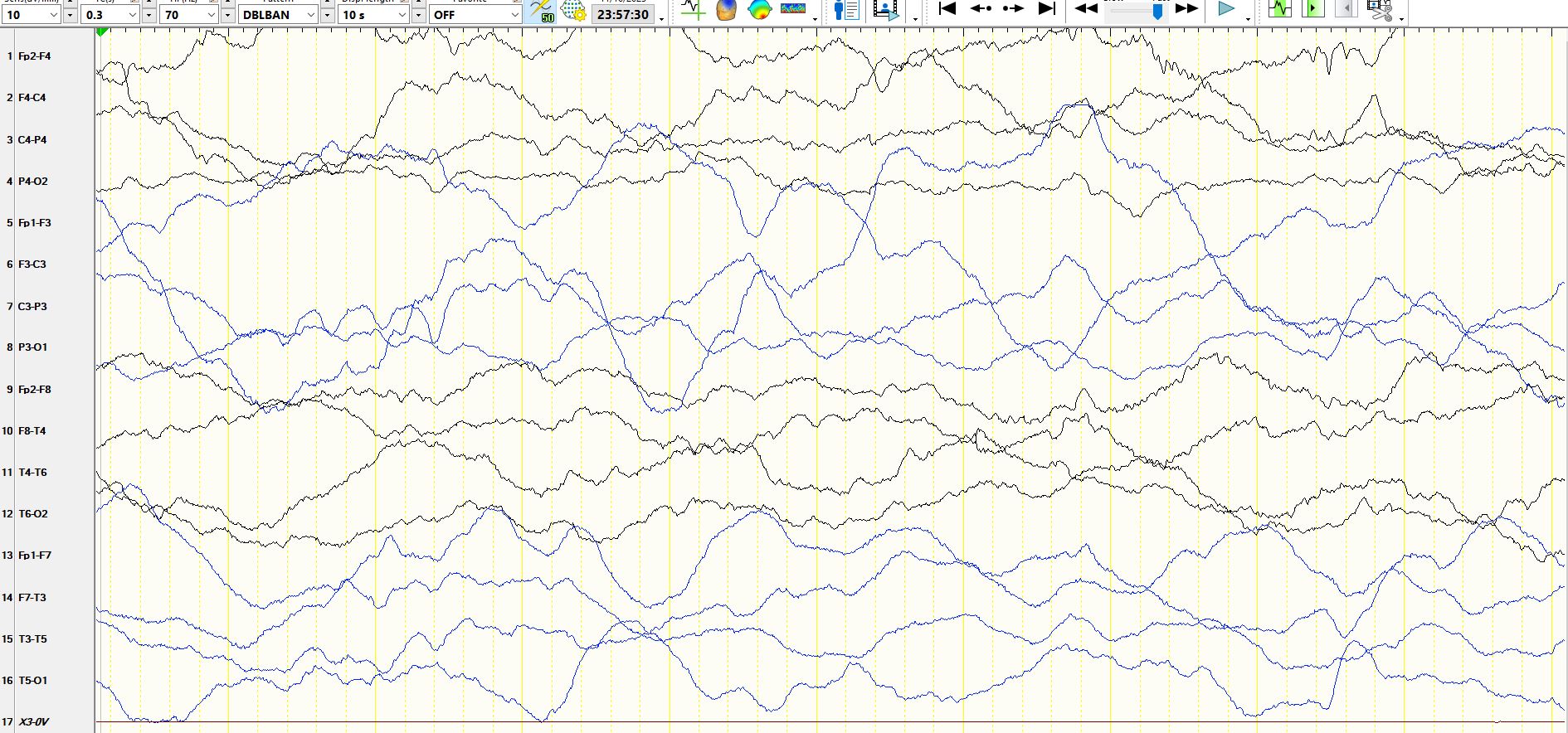

The following demonstrates an asymmetry of the beta frequencies:

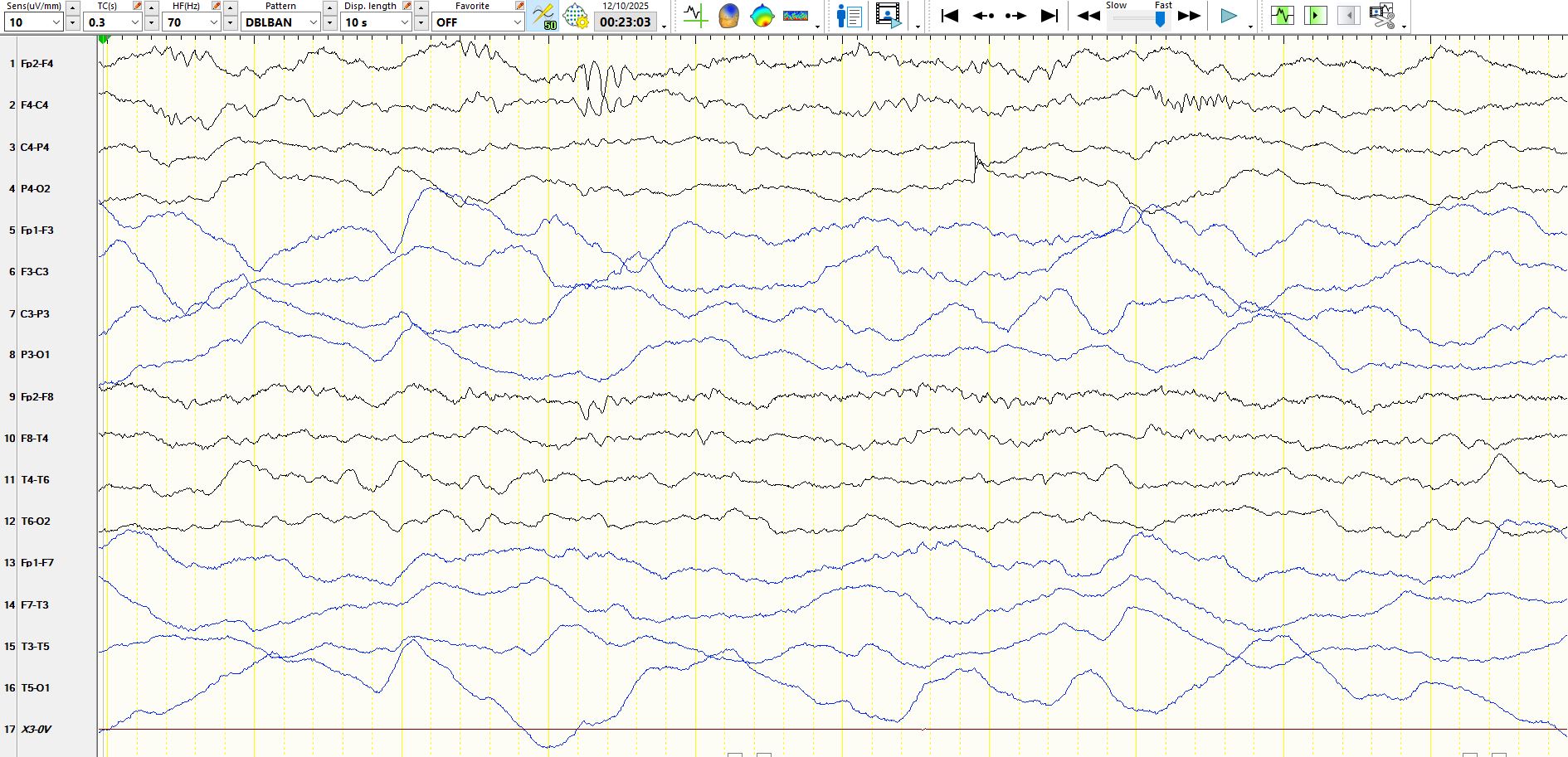

 The following demonstrates an asymmetry of frontal alpha frequencies and spindles (7th second):

Sleep:

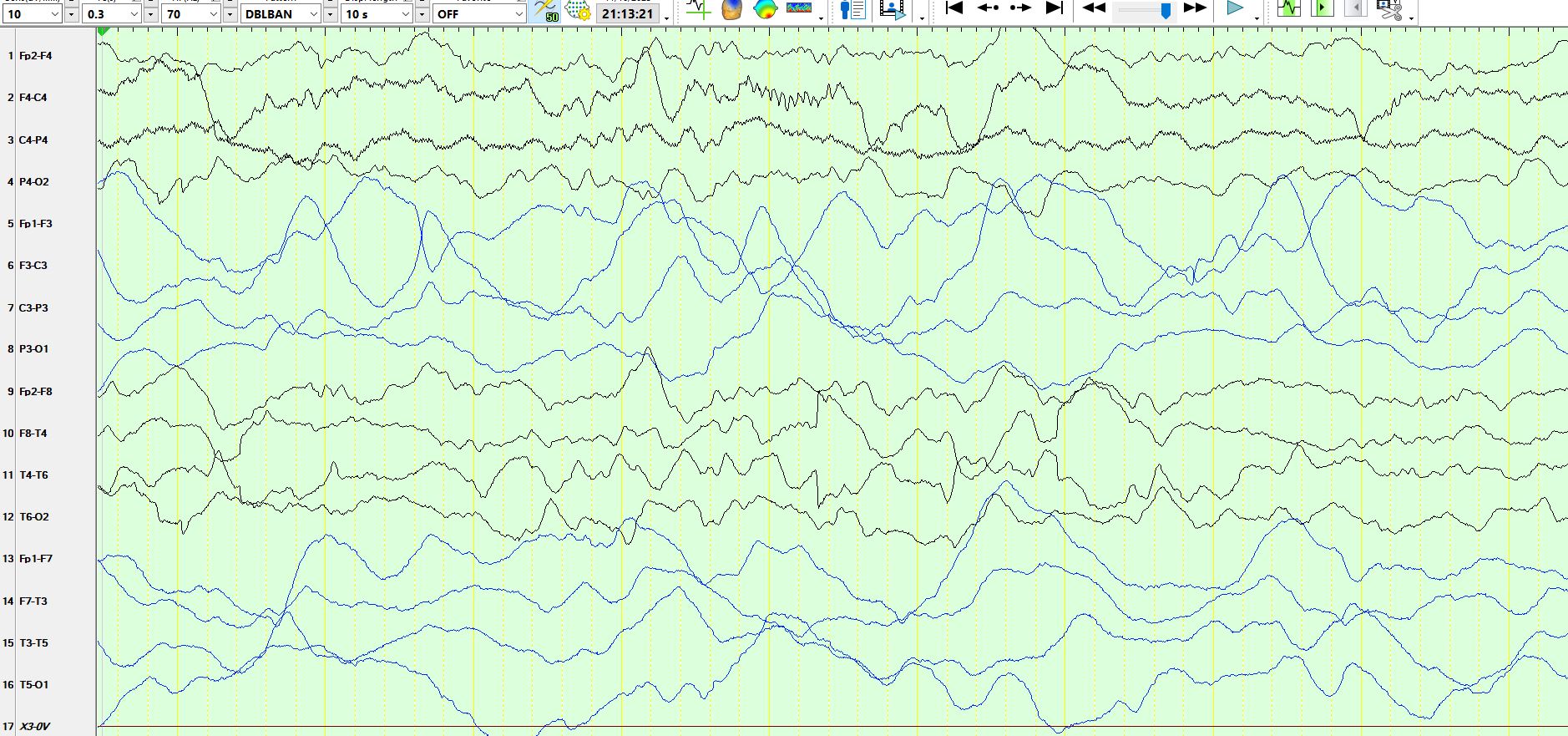

The above page demonstrates the absence of spindles on the left.

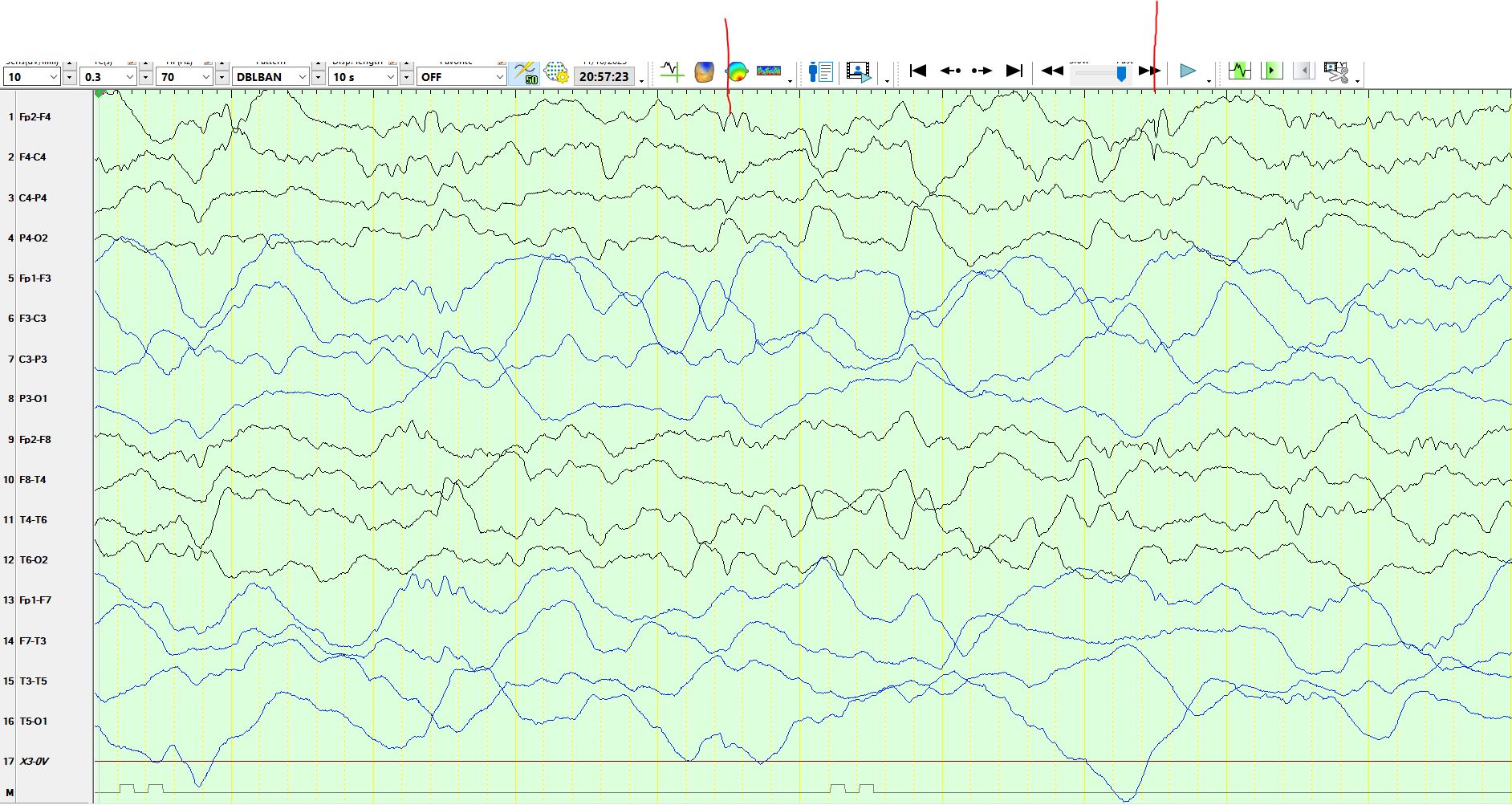

The above demonstrates an asymmetry of the V-waves.

Collectively, the above findings demonstrate severe dysfunction of the left hemisphere.

PS: the paediatric neurologist reports an acute, large, ischaemic, right hemispheric stroke due to zoster.
